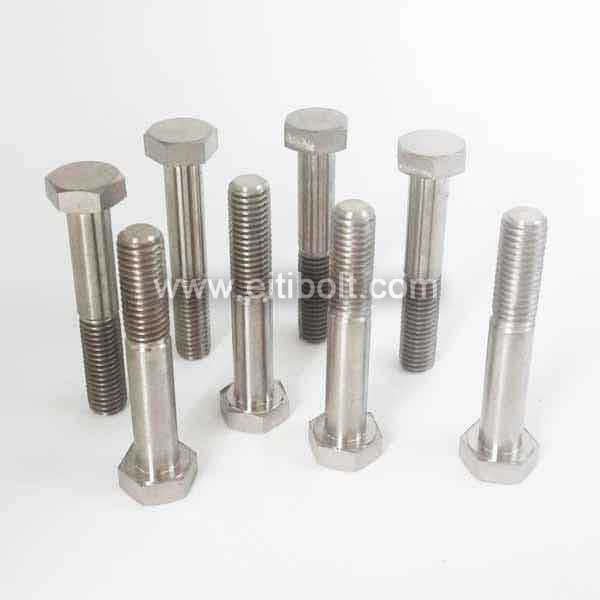

- Titanium bolt with hex head.
- M10 Rolled threads – smoother, stronger and more durable than CNC cut threads.
- Coarse pitch available at 1.5, and fine threads available at 1.25, 1 and 0.75, tolerance 6H.
- Made according to standard specifications.
- Made from solid titanium bar, fully inspected by supersonic detection.
- Titanium grade optional in GR1/GR2/GR5 etc.
- Threads in inches optional (TPI, UNC, UNE, UNEF).
- Fully CNC machined precisely and smoothly.
- Customizable according buyers’ samples or 2D/3D CAD profiles.
- Also optional for other materials like zirconium, molybdenum, tungsten, stainless steel, aluminum, copper, brass and other alloys.
Materials of Tapered Hex Titanium Bolt
The following grades of materials are optional as regular stocked materials. If required material grade is not listed, please let us known.
In this table, the composition and strength of the materials are listed.
| Titanium Grades | Composition | Density | Tensile | Yield | |||
| GBT | ASTM | gram/cm3 | MPa | KSI | MPa | KSI | |
| TA1 | GR1 | Pure Titanium | 4.51 | 240 | 35 | 138 | 20 |
| TA2 | GR2 | Pure Titanium | 4.51 | 345 | 50 | 275 | 40 |
| TC4 | GR5 | Ti6Al4V | 4.43 | 895 | 130 | 828 | 120 |
| GR9 | Ti3Al2.5V | 4.48 | 620 | 90 | 483 | 70 | |
Compared to other commonly used metals, Hex Titanium Bolt are easy to make, light and corrosion resistant, yet it does not require surface treatment in most circumstances.
The following table also shows the comparison of titanium alloy, stainless steel and aluminum alloy that are used for machinery parts and industrial fasteners like bolts/screws, nuts and washers etc.
| Material | Property | Density | Tensile | Yield | Typical Application |
| Typical Grade | gram/cm3 | Mpa | Mpa | ||
| Titanium Alloy | Gr5 (Ti6Al4V) | 4.43 | 895 | 828 | Aviation |
| 304 Stainless Steel | 304(08Cr19Ni9) | 7.93 | 515 | 205 | Kitchen Utensils |
| Aluminum Alloy | 7075 | 2.81 | 560 | 495 | Aviation |
Materials We Deal with
Most common materials (including their alloys) we deal with are: titanium, aluminum, copper, stainless steel, tungsten, zirconium, molybdenum.
Thread Sizes
Threads of the Hex Titanium Bolt can be made in metric, BS, and UN series. Thread pitches and diameters follow the major standards of ISO/BS/ASME specifications.
Major Processes of Making Hex Titanium Bolt
- Purchase of solid titanium bars/rods.
- Supersonic inspection and mechanical tests of titanium bars/rods.
- Continuous CNC machining of the basic profile of the Hex Titanium Bolt from the bars/rods.
- Threading
- Tapping threads.
- CNC cutting threads.
- Rolling threads.
- Inspection of the Hex Titanium Bolt
- Cleaning, washing, drying & packing of the Hex Titanium Bolt
Packing of Hex Titanium Bolt
The Hex Titanium Bolt are mostly packed in plastic bags and shipped in carton boxes.
Shipping
We use the world famous couriers like FedEx, TNT, UPS, DHL etc. to delivery our titanium bolts/screws, nuts/fittings, washers and other fasteners to our global clients.
Manufacturing Capabilities
We have the skills and equipement to bring your ideas/designs into real, physical titanium parts/fasteners.
- CNC turning/shaving/milling/grinding of titanium parts and fasteners.
- Casting/forging/wire EDM cutting of titanium parts profiles.
- High precision threading of titanium parts and fasteners.
- Rolling and CNC cutting of metric/inch threads of titanium parts and fasteners.
- PVD coating of titanium parts and fasteners.
- Anodizing of titanium parts and fasteners.
- MAO of titanium parts and fasteners.
