Titanium Fitting for High Pressure Hydraulic Pipes with a Hex

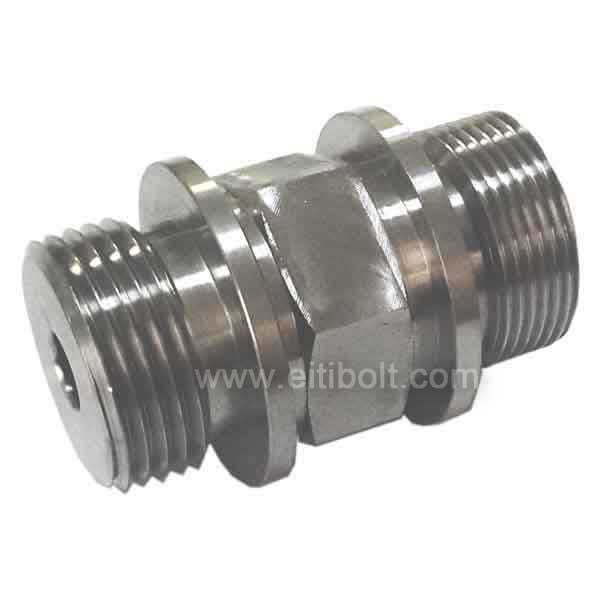

CNC Titanium Male Fitting
  • Customized by buyers’ samples or 2D/3D CAD profiles.
  • Fully CNC turned from solid Gr5 titanium bar, other grades of titanium optional.
  • Aluminum, stainless, copper, copper alloy, brass, zirconium, molybdenum, tungsten etc.

Materials of Tapered Head Titanium Hydraulic Fittings

The following grades of materials are optional as regular stocked materials. If required material grade is not listed, please let us known.

In this table, the composition and strength of the materials are listed.

Titanium GradesCompositionDensityTensileYield
GBTASTMgram/cm3MPaKSIMPaKSI
TA1GR1Pure Titanium4.512403513820
TA2GR2Pure Titanium4.513455027540
TC4GR5Ti6Al4V4.43895130828120
 GR9Ti3Al2.5V4.486209048370

Compared to other commonly used metals, Tapered Head Titanium Screws are easy to make, light and corrosion resistant, yet it does not require surface treatment in most circumstances.

The following table also shows the comparison of titanium alloy, stainless steel and aluminum alloy that are used for machinery parts and industrial fasteners like bolts/screws, nuts and washers etc.

MaterialPropertyDensityTensileYieldTypical Application
Typical Gradegram/cm3MpaMpa
Titanium AlloyGr5 (Ti6Al4V)4.43895828Aviation
304 Stainless Steel304(08Cr19Ni9)7.93515205Kitchen Utensils
Aluminum Alloy70752.81560495Aviation

Materials We Deal with

Most common materials (including their alloys) we deal with are: titanium, aluminum, copper, stainless steel, tungsten, zirconium, molybdenum.

Thread Sizes

Threads of the Tapered Head Titanium Screws can be made in metric, BS, and UN series. Thread pitches and diameters follow the major standards of ISO/BS/ASME specifications.

Major Processes of Making Titanium Hydraulic Fittings

  1. Purchase of solid titanium bars/rods.
  2. Supersonic inspection and mechanical tests of titanium bars/rods.
  3. Continuous CNC machining of the basic profile of the Titanium Hydraulic Fittings from the bars/rods.
  4. Threading
    • Tapping threads.
    • CNC cutting threads.
    • Rolling threads.
  5. Inspection of the Titanium Hydraulic Fittings.
  6. Cleaning, washing, drying & packing of the Titanium Hydraulic Fittings.

Packing of Tapered Head Titanium Hydraulic Fittings

The Titanium Hydraulic Fittings are mostly packed in plastic bags and shipped in carton boxes.

Shipping

We use the world famous couriers like FedEx, TNT, UPS, DHL etc. to delivery our titanium bolts/screws, nuts/fittings, washers and other fasteners to our global clients.

Manufacturing Capabilities

We have the skills and equipement to bring your ideas/designs into real, physical titanium parts/fasteners.

  • CNC turning/shaving/milling/grinding of titanium parts and fasteners.
  • Casting/forging/wire EDM cutting of titanium parts profiles.
  • High precision threading of titanium parts and fasteners.
  • Rolling and CNC cutting of metric/inch threads of titanium parts and fasteners.
  • PVD coating of titanium parts and fasteners.
  • Anodizing of titanium parts and fasteners.
  • MAO of titanium parts and fasteners.
