Features

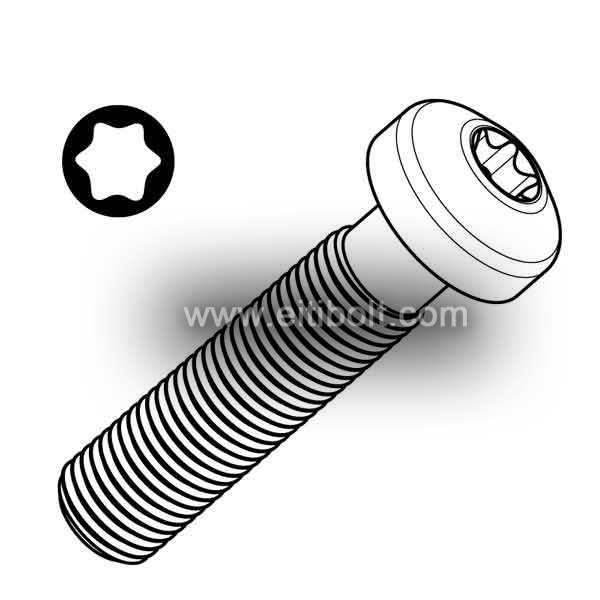

- Hexalobular socket (torx) pan head per ISO14583 or ASME B18.3.
- Rolled threads with smoother surface quality and higher thread strength and fatigue life compared to turned (lathe cut) threads.
- Fully CNC machined from solid titanium bars.
- Titanium grades optional in pure titanium Gr1/Gr2, alloy Gr5 (ti6al4v), Gr7, Gr9 etc.
Options
- Full thread optional.
- Aluminum, stainless steel, copper, brass, copper nickel, zirconium, tungsten etc optional.
- Anodizing, microarc oxidation (MAO, MPO, PEO), PVD coating optional.
Order Guides
- MOQ: 100 pcs (titanium only).
- Made according to one of the major standards, unless specified by the buyer.
- Partially or fully threaded whichever is available, unless specified by the buyer.
Metric Series
Standards
- ISO 14583 Hexalobular (torx) socket pan head screws;
Sizes
Unit: mm
| Nominal Diameter | Pitch | Driver No# |
| M2 | 0.4 | 6 |
| M2.5 | 0.45 | 8 |
| M3 | 0.5 | 10 |
| M3.5 | 0.6 | 15 |
| M4 | 0.7 | 20 |
| M5 | 0.8 | 25 |
| M6 | 1 | 30 |
| M8 | 1.25 | 45 |
| M10 | 1.5 | 50 |
Inch Series
Standard
- ASME B18.3
Sizes
Threads available: UNC, UNF, UNEF.
Unit: inch
| Nominal Size | Basic Diameter | Driver No# |
| 0 | 0.060 | 0.035 |
| 1 | 0.073 | 0.050 |
| 2 | 0.086 | 0.050 |
| 3 | 0.099 | 0.062 |
| 4 | 0.112 | 0.062 |
| 5 | 0.125 | 0.078 |
| 6 | 0.138 | 0.078 |
| 8 | 0.164 | 0.094 |
| 10 | 0.190 | 0.125 |
| 1/4 | 0.2500 | 0.156 |
| 5/16 | 0.3125 | 0.188 |
| 3/8 | 0.3750 | 0.219 |
| 7/16 | 0.4375 | 0.250 |
| 1/2 | 0.5 | 0.312 |
| 5/8 | 0.6250 | 0.375 |
| 3/4 | 0.750 | 0.500 |
| 7/8 | 0.8750 | 0.562 |
| 1 | 1.0000 | 0.625 |
| 1-1/8 | 1.1250 | 0.750 |
| 1-1/4 | 1.2500 | 0.875 |
| 1-3/8 | 1.3750 | 0.875 |
| 1-1/2 | 1.500 | 1.000 |
